Exclusive Grill cabin

Exclusive Grill cabin 7.0 m²

Inside area, m² 7.0

Shape Hexagon

Size 10-15 people
Wood Spruce
Roof/ Covering Bitumen shingles
Total height, m 3.620 (with chimney)

Extern-dimensions (WxDxH), m 3.827 x 3.395 x 3.320
Wall thickness, mm 45
Wall height, mm 1200 (sloping walls)
Benches 5 (2 folding)
Floor thickness, mm 95 (floor frame); 25 (floor boards)
Window / size, mm 880 x 510 double glazed / openable
Number of windows 3 (opening)
Door / size, mm 1500 x 780
Delivery for full truck 6
Cargo size ( LxWxH), m 1 st pallet: 3.3 x 1.2 x 2.5
2 nd pallet: 1.2 x 1.0 x 1.2
Weight, kg 1200

Exclusive Grill cabin 9.2 m²

Inside area, m² 9.2

Shape Hexagon

Size 12-15 people
Wood Spruce
Roof/ Covering Bitumen shingles
Total height, m 3.435 (with chimney)

Extern-dimensions (WxDxH), m 4.311 x 3.814 x 3.135
Wall thickness, mm 45
Wall height, mm 1200 (sloping walls)
Benches 5 (2 folding)
Floor thickness, mm 95 (floor frame); 25 (floor boards)
Window / size, mm 880 x 510 double glazed / openable
Number of windows 3 (opening)
Door / size, mm 1500 x 780
Delivery for full truck 6
Cargo size ( LxWxH), m 1 st pallet: 3.5 x 1.2 x 2.5
2 nd pallet: 1.2 x 1.0 x 1.2
Weight, kg 1500

Exclusive Grill cabin 12.5 m²

Inside area, m² 12.5

Shape Octagonal

Size 15-18 people
Wood Spruce
Roof/ Covering Bitumen shingles
Total height, m 3.700 (with chimney)

Extern-dimensions (WxDxH), m 4.891 x 4.542 x 3.400
Wall thickness, mm 45
Wall height, mm 1200 (sloping walls)
Benches 5 (2 folding)
Floor thickness, mm 95 (floor frame); 25 (floor boards)
Window / size, mm 880 x 510 double glazed / openable
Number of windows 3 (opening)
Door / size, mm 1500 x 780
Delivery for full truck 4
Cargo size ( LxWxH), m 1 st pallet: 3.3 x 1.7 x 2.5
2 nd pallet: 1.2 x 1.0 x 1.2
Weight, kg 1900

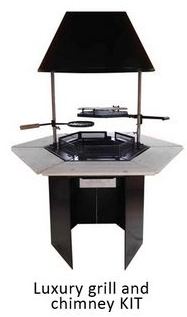

Available grill and chimney

Roof bitumen shingles‘ color: black, green, red, brown
